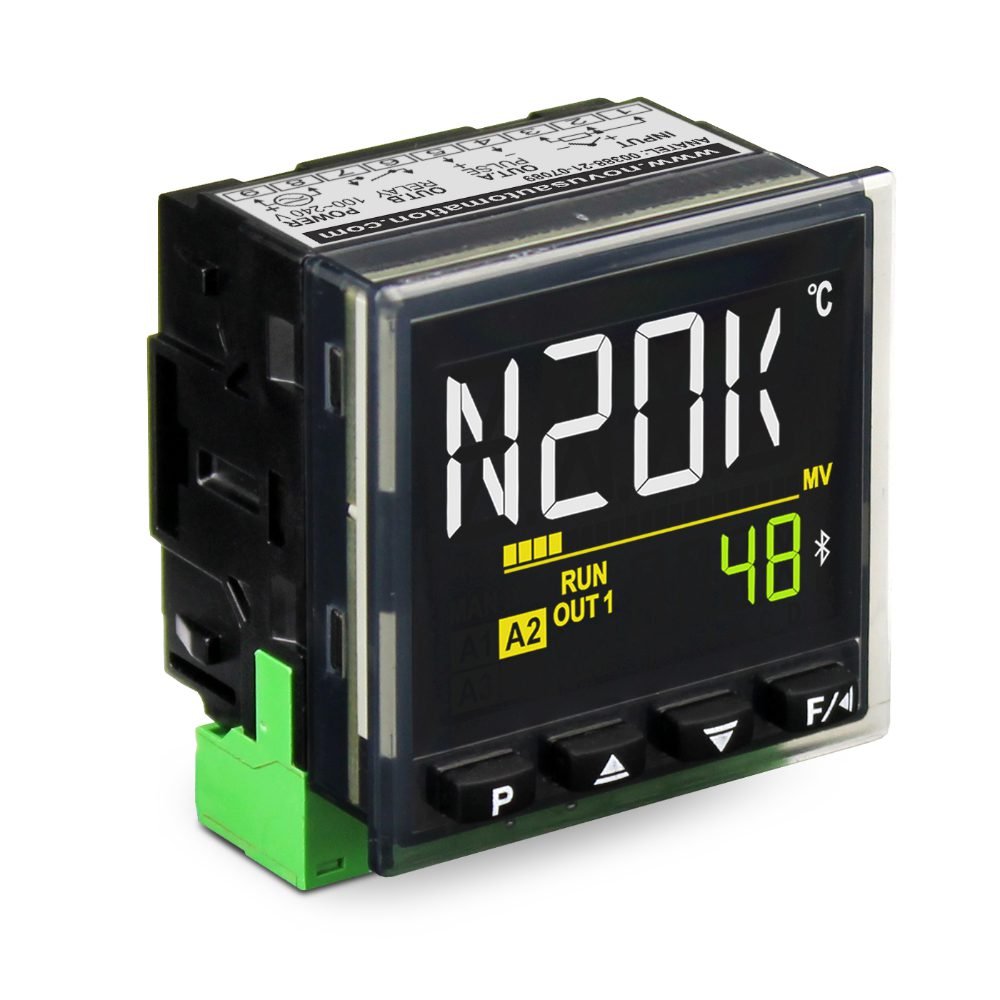

N20K48 Novus PID Process Controller - Bluetooth, 1 relay, 1 pulse output
Regular price
£99.00
Regular price
Sale price
£99.00
Unit price
per
Tax included.
Novus Modular PID Process Controller - Base unit Relay & Pulse Output, model N20K48, expandable modular design.
Couldn't load pickup availability
Availability:
Low stock: 10 left
SKU:
820K481010
Regular price
£99.00
Regular price
Sale price
£99.00
Novus Modular PID Process Controller - Base unit Relay & Pulse Output, model N20K48, expandable modular design.
Other inputs and output available upon request such a analogue and digital options.
Global innovation product from NOVUS, available at Under Control Instruments, we are proud to release the N20K48 controller family. Its new and consistent concept is based on a compact, powerful core controller plus a growing family of micromodules that enables it to meet a wide range of application requirements in the industry. Its excellent cost-effective expansion micromodules allow for scalability of I/O, features and connectivity. In addition, it is a single controller model for all family, which avoids dealing with specific and expensive models, allowing easy spare parts inventory management.
The NOVUS ClickNGo technology for N20K48 micromodules ensures expandable capacity for more demanding applications and standardizes the learning and training of industry technical staff.
The native Bluetooth interface offers simple field diagnostic and commissioning through the QuickTune Mobile app, which reduces eventual downtime, while the USB interface provides batch configuration options, optimizing workbench series production.
With a new elegant and distinctive design, the controller features a large and bright clear-to-read display, while keeping a compact depth enclosure, making it suitable for installation in restricted spaces.
With a design focused on the best user experience, the QuickTune Mobile app provides to the user an intuitive mobile platform for configuration management for all controllers and micromodules on the shop floor.
QuickTune for Mobiles
QuickTune for PC
QuickTune software download for PC
Features
Display: LCD type, alphanumeric with 11 segments.
Input Type: Thermocouple J, K, T, E, S, N, R, B, Pt100, 0-50 mV, 0-5 V, 0-10 V, 0-20 mA and 4-20 mA.
PID Features: PWM, Autotune
Control Action: 1 Loop (Heat or Cool)
Output Control:1 Pulse and up to 1 Relay
Ramp & Soak: 20 Programs, 9 Segments
Sampling Period: 18 ms
Communication: RS485 Modbus RTU (optional)
Power Consumption: 10 VA
Special Functions: Soft-Start, PID Loop Break, Ramp and Soak event, 4 Alarms (9 alarm types) and Timer Function
Configuration: Software NOVUS QuickTune, QuickTune Mobile, via USB (micro-B type) or Bluetooth
Power Supply: 100-240 Vac/dc or 12-24 Vdc (Optional)
Operate Conditions: Temperature: -20 to 60 °C (-4 to 140 °F), Humidity: 80 % @ 30 °C (86 °F)
Front Panel: IP65, Polycarbonate (PC) UL94 V-2
Enclosure: 48x48 (DIN 1/16), ABS+PC UL94 V-0
Minimum System Requirements:
- Computer with dual-core 2 GHz processor or higher.
- 4 GB RAM (8 GB recommended).
- Monitor and graphic card with 1280 x 720 minimum resolution.
- 1 GB hard disk space; Windows 8 or higher operating system.
- USB port.
- Network interface (to software features that require internet access).
Languages: Portuguese, Spanish, English, and French.
Software Upgrade: the software provides automatic updates (Internet access required)
Communication Interfaces: USB, RS485 and Ethernet
Compatible Devices:
- Controllers: N1020, N1040, N1040T, N1050, N480D, N120, N1200, N1200HC, N2000, N960 and N3000.
- Indicators: N1040i, N1540, N1500 and N1500LC.
Configuration Modes: basic, feature, cycle and favorite (custom).
Bulk Configuration: batch configuration available for all devices with embedded USB
Report: value report of all configured parameters.
Advanced Resources:
- Graphic ramp and soak assistant.
- Custom configuration with favorite parameters.
- Configuration conversion between models of the same family.
Diagnosis: graphics with PV, SP, and MV. Alarm, inputs, and outputs status available.
Device Management: Connected devices mapping to the network and custom devices grouping.
Device Firmware Update: available for all devices with embedded USB.
Auxiliary Resources:
- Sending configuration file directly to technical support.
- Access to product manuals via software.
N20K48 Modular Process Controller
Customer Reviews
Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
The Novus Modular PID is an amazing unit. Having come from a rework station PID (it was cheap and worked well for the past 7 years) to a decent new PID that I didn't have to work out hours into seconds and have a limited ramp rate with. Its amazing. It's self learning options seem to be comprehensive even though I have just used the simplest option. Its display is great and knowing how long each cycle has left is really good. I have only used it a few times so far setting up my new oven and one actual cure cycle for my carbon fibre work. It does all it should do and is informative.
Now the not so great part, but not bad or a deal breaker which could just be improved a little.
The APP...
Yes you can set up every aspect of the unit. You can set programs into the unit from the app too. But its not especially user friendly. I have found adding a program to the unit has also turned on the unit when all I wanted was to add a program. The ramp rate is great where you can set it to go from temp (A) to temp (B) in a set time. But it seems you need to have a start point (A) when initially you are working from ambient temp so the program needs to be set lower than ambient ( I have set mine to 0 degrees C) and you have to wait for the unit to reach ambient at the set ramp rate. I run 1 degree every 90 seconds so in winter that could be a 9 minute lag if the oven is at 6 degrees C or in summer it could be 45 minutes if it is at 30 degrees C ambient. It just means you need to adjust the start point for each program if you do not want to run the oven at 100% as it tries to catch up with the controller. Sending changes to the unit form your phone is one press on the phone but you are never sure if you have changed all the programs in the unit if you just make a quick program and up load it if you have not gone to the saved configuration and edited that before uploading. The app needs to have some work done and I am still getting used to it. But you do need to check any other cure cycle programs if you make any changes as it MIGHT change or delete them.
Overall I am very happy as the app side is just a small issue and once the oven has 6 or 7 programmed cure cycles for me I doubt those will change and the app will not really be used much at all.
