Bench Top Temperature Control Panel

£288.00
£288.00
Tax included.
Bench top temperature control panel, PID or ON/OFF control, 13A output via a 25A SSR, thermocouple input.
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Availability: Low stock: 4 left
SKU: BTC1Z
Tags:
Collections:
£288.00
£288.00

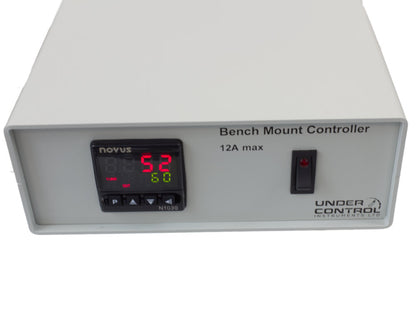

This temperature control panel is designed for test bench applications that require "Plug 'n' Play" capabilities. It features a standard-size thermocouple input for a temperature sensor (not included), and can control a 13A device through its input UK socket. The control options include PID or ON/OFF settings, and output is available through a 25A solid-state relay. This bench-top unit can easily be plugged into a 240v mains socket.

Features

  • Ready to use, no Wiring required.
  • PID or ON/OFF control

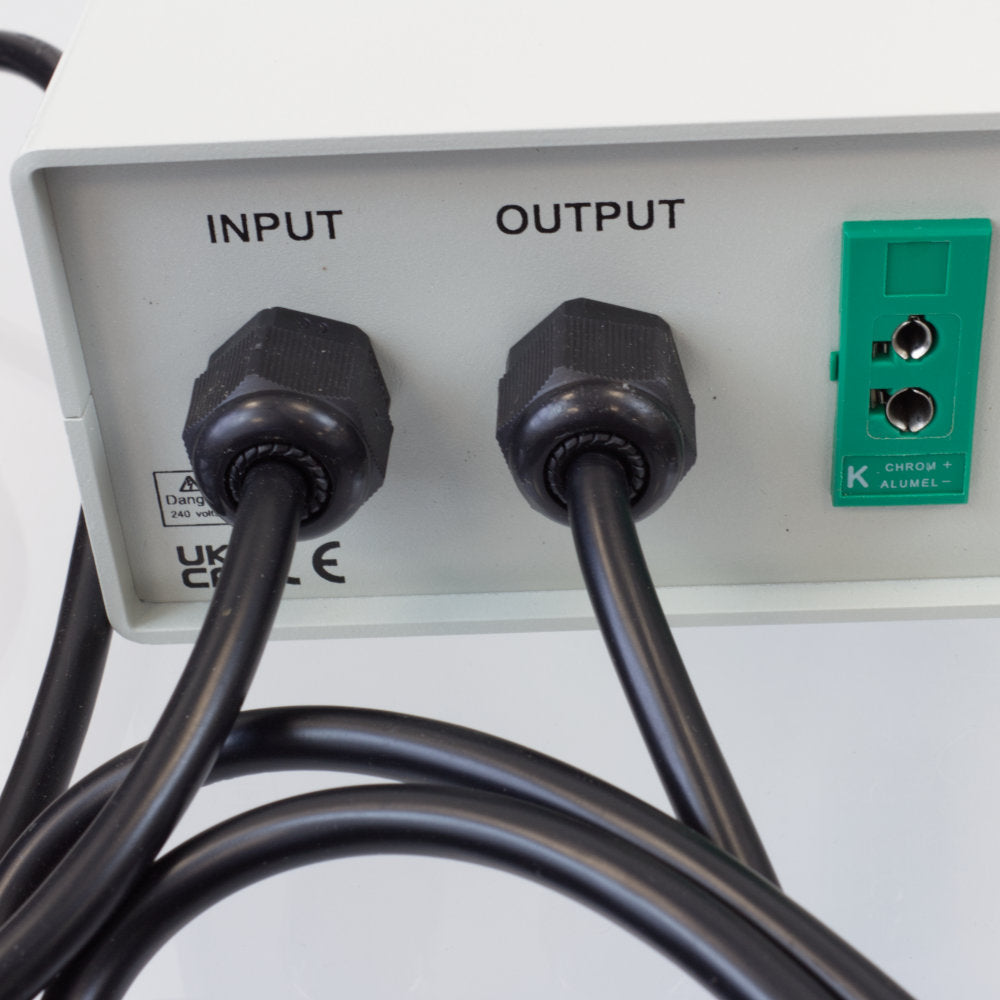

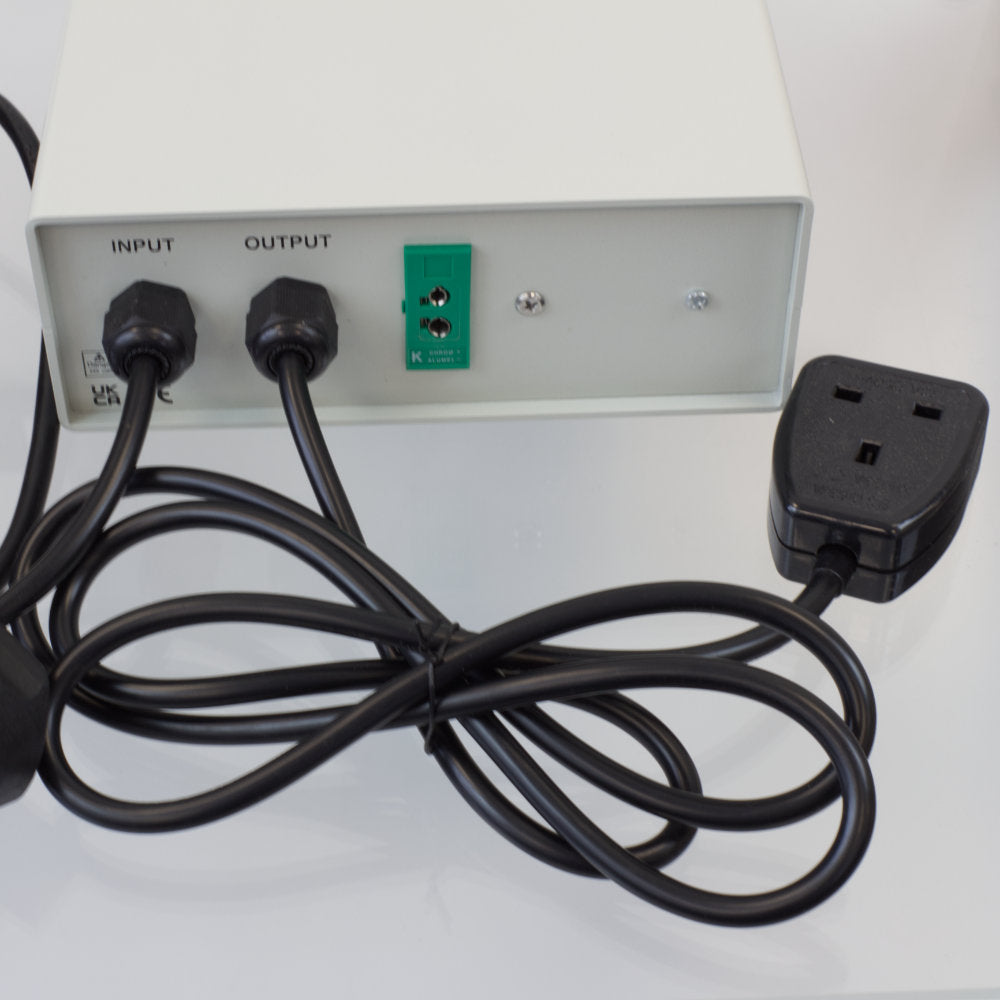

  • 1m 13A, 240v plug input power supply
  • 1m 13A 230v socket output to heating element.
  • K-type thermocouple socket for sensor input
  • Rotary on/off isolation switch


Dimensions

270 L x 200 W x 100 H mm
