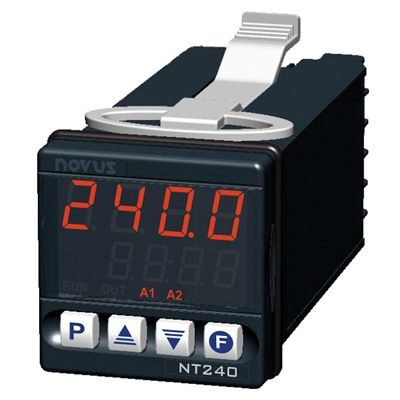

NT240 Programmable Timer

NT240 Programmable Timer, 4 digit display, relay output 48x48mm x 100mm (1/16 DIN)
NT240 Programmable Timer has a 4 digit display, the timer has a relay output that switches at the pre-programmed intervals according to eleven different timing functions. The LED display shows the running time and the digital inputs execute start, hold and reset functions. Dimensions: 48x48mm x 100mm (1/16 DIN).

SPECIFICATION

- Input types: NPN/PNP sensors; NO/NC dry contact

- Outputs: 1 SPST Relay 3 A / 250 Vac (3 A / 30 Vdc); 1 voltage pulse 5 V / 25 mA

- Accuracy: 0.5% of displayed time

- Response time: 10 ms for the relay output and 0.3ms for the pulse output

- Time base: 7 scales, from 99.99 seconds to 9999 hours

- Auxiliary power supply: 12 Vdc ±10 % / 50 mA

- Dual 4-digit display

- UP or DOWN time counting (decimal or hour:minute:second)

- Power: 100 to 240 Vac/da ±10 %, 50/60 Hz or 24 Vdc/ac, 50/60 Hz

- Maximum consumption: 3 VA

- Enclosure: IP20

- Operating environment: 5 to 50 °C, 30 to 80% humidity

- Dimensions: 48 x 48 x 110 mm. Panel cutout: 45.5 to 45.5 mm

- Silicone rubber keypad

- Front panel: IP65, Polycarbonate UL94 V-2

- Back panel: IP20, ABS+PC UL94 V-0

- Rated CE and UL
