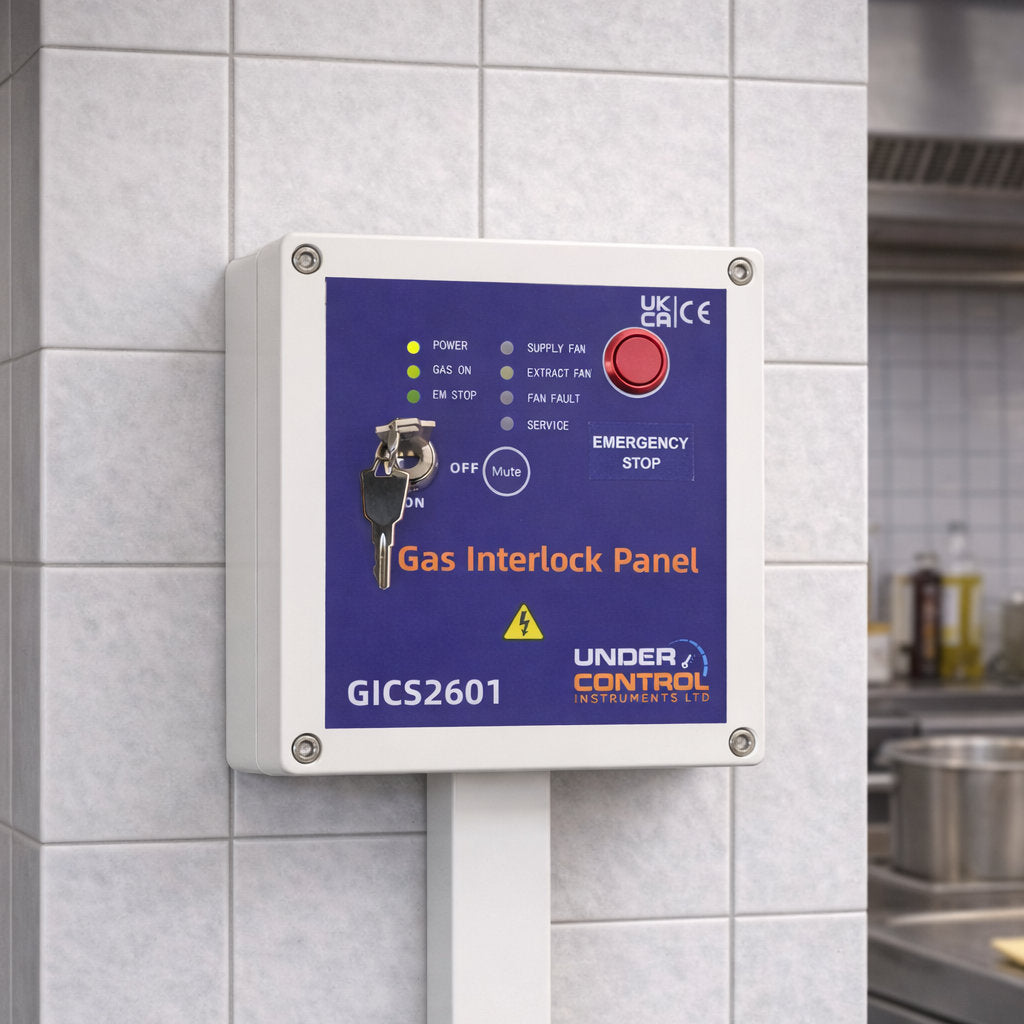

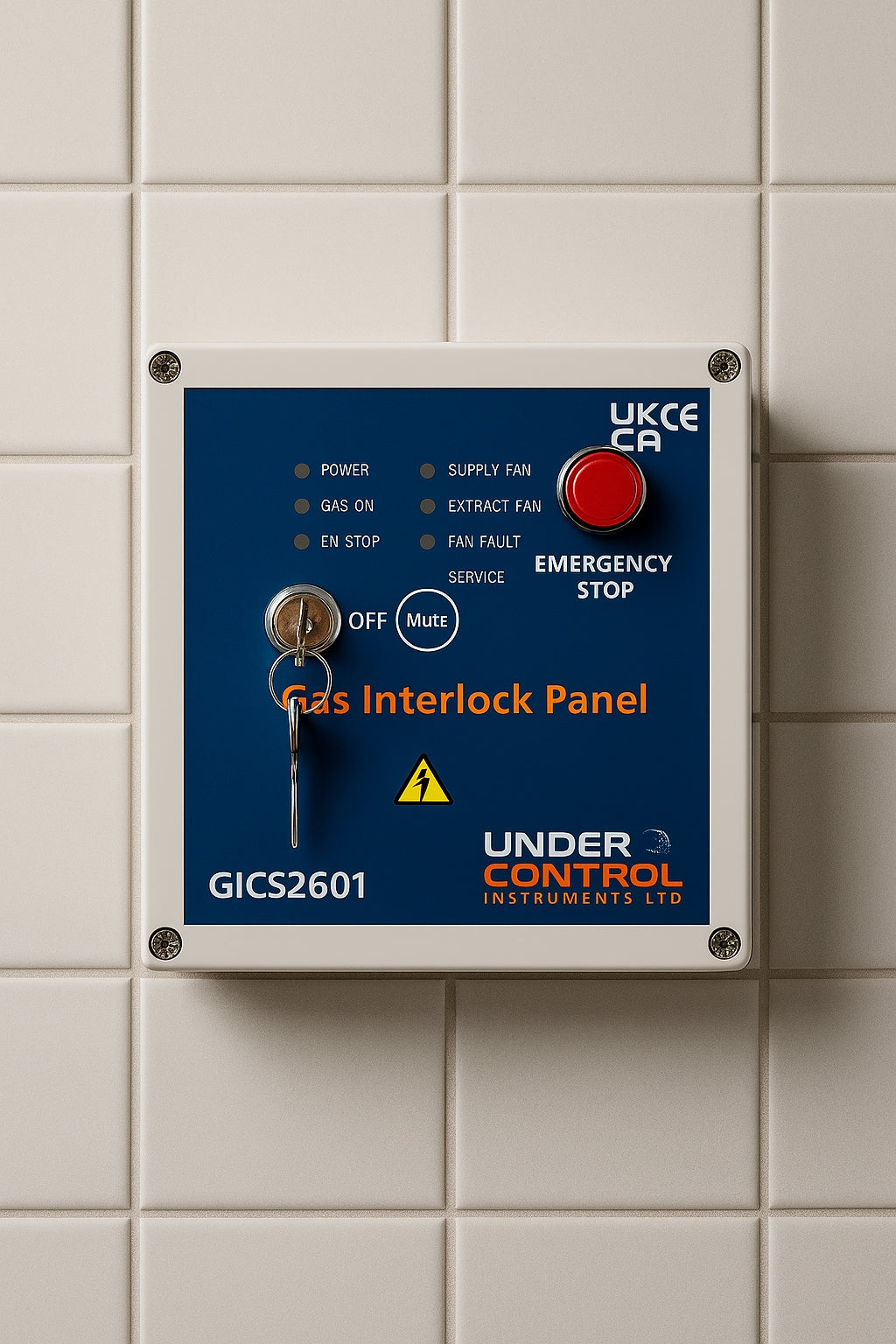

Gas Interlock Panel – Model GICS2601

Our new design Gas Interlock System is engineered to provide reliable, cost-effective, and fully compliant gas safety control for commercial kitchens and industrial environments. This unit complies with BS6173, ensuring your installation meets all UK safety standards.

Do I need a Gas Interlock System?

A gas interlock system is an important safety device for commercial kitchens using gas appliances. It links the gas supply to the extraction system, helping ensure appliances only operate when adequate ventilation is available. If the extraction system fails or an unsafe condition is detected, the interlock can shut off the gas supply and activate audible and visual alarms.Gas interlock systems are commonly required for commercial kitchens such as restaurants, takeaways, cafés, hotels, pubs and schools, depending on the installation and applicable safety requirements. A Gas Safe registered engineer should assess the installation to confirm whether an interlock system is required.

How It Works

• Fan Current Monitoring: Built-in sensors continuously monitor the electrical current of canopy fans to verify operation. Differential Pressure Monitoring: The pressure differential in front of and behind the installed fans is measured via external pressure switches.
• Intelligent Control Panel: Processes input from fans and controls the gas solenoid valve.
• Set Points: Adjustable fan current set points ensure appliances only run with sufficient airflow.
• Automatic Shut-Off: If fan speed drops below the set threshold, the system cuts off the gas supply via solenoid valves.
• Safety Alarms: Provides both visual indicators and audible warnings to alert staff immediately.

Key Features & Benefits

• Regulatory Compliance: Meets BS6173 and UKCA standards.
• Signal type: Current and Air Pressure sensing.
• Enhanced Safety: Prevents gas flow unless ventilation fans are operational.
• User-Friendly Design: LED indicators and an emergency stop button for quick action.
• Secure Access: Key-operated ON/OFF switch with mute function.
• Durable Construction: Robust enclosure for demanding environments.

Technical Specifications

• Model: GICS2601
• Type: Current & Air sensing
• Indicators: Power, Gas On, EM Stop, Supply Fan, Extract Fan, Fan Fault, Service
• Emergency Stop: Large red push-button
• Control: Key-operated ON/OFF switch with mute
• Enclosure: IP-rated for commercial kitchen use
• Certification: UKCA | BS6173 compliant
• Dimensions: 120x120x65mm (LWH)
• Weight: 1.5kg

Applications

Perfect for:

• Commercial kitchens
• Catering facilities
• Restaurants and food preparation areas requiring gas interlock systems

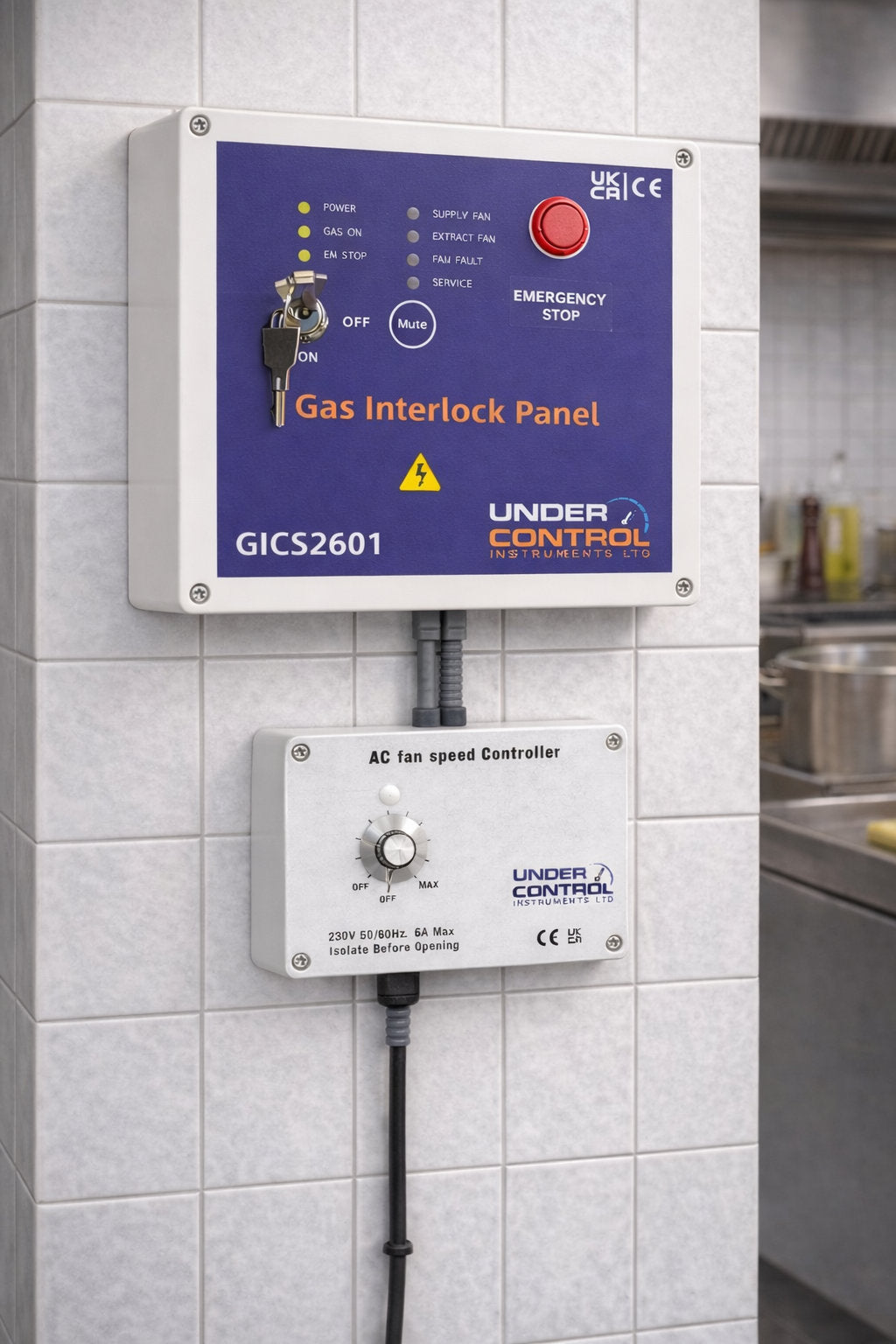

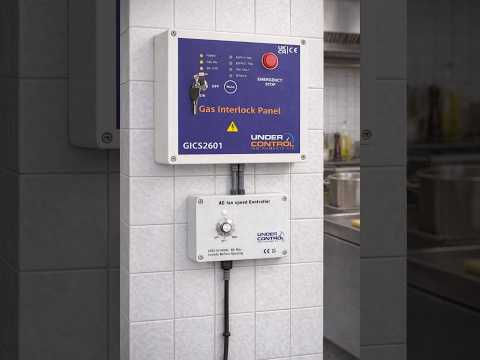

Installation Examples

Installation by Richard Canary
