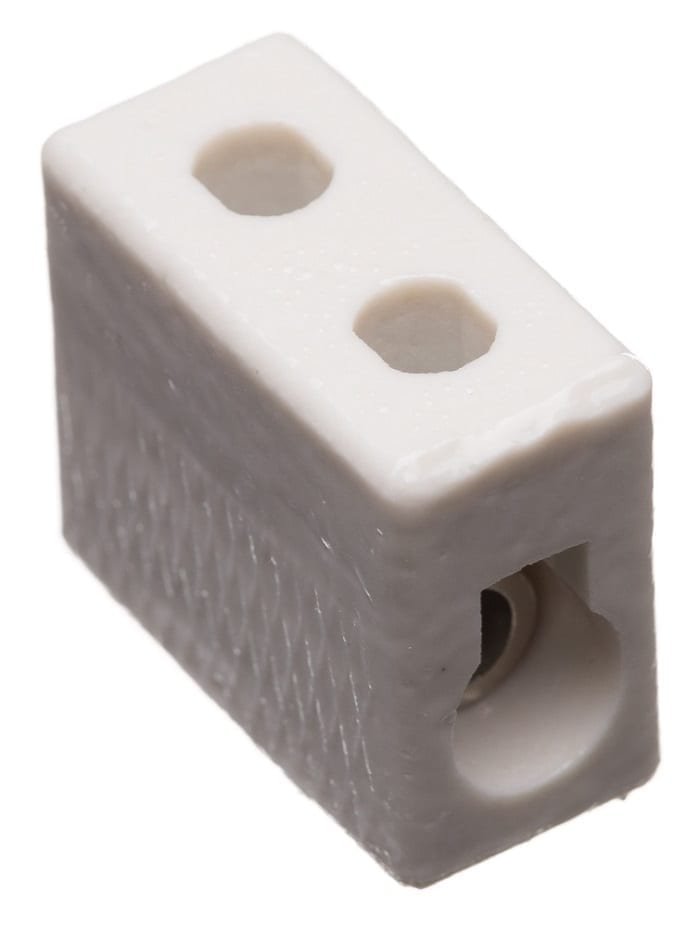

Ceramic Connector Blocks Single Pole

Ceramic connector blocks single pole are available in amperages from 32A to 76A (ambient) or 10A to 35A at 350 deg C. One, two and three pole connections
Ceramic connector blocks single pole makes wiring connections to heaters secure and has a touch-safe design. It is used in ovens, furnaces, kilns, infrared heaters, quartz tube heaters, catering equipment, etc. Fitted with Nickel-plated brass connectors, they can withstand temperatures up to 350°C.

Available in amps from 32A to 76A (cold) and 10A to 35A (hot) and one, two and three pole connections.

Features

• Porcelain body rated to 1000°C
• Inserts rated to 350°C
• 1 to 3 poles
• Cables size up to 16mm2
• CE marked
• Voltage: (Max) 450V AC
• Working temperature: 5°C to 350°C
• Insulating body: Porcelain
• Insert: Nickel-plated brass
• Screws: Zinc-plated steel

Why use Ceramic Connector Blocks?

Ceramic connector blocks are used to protect the wiring cable connected to heating elements from melting. Normally plastic connectors will melt at temperatures above 80 deg C. In a wiring assembly that includes heating elements, the temperature could increase and need adequate protection. Ceramic connectors are designed for this and will not melt like other types of similar connectors.
