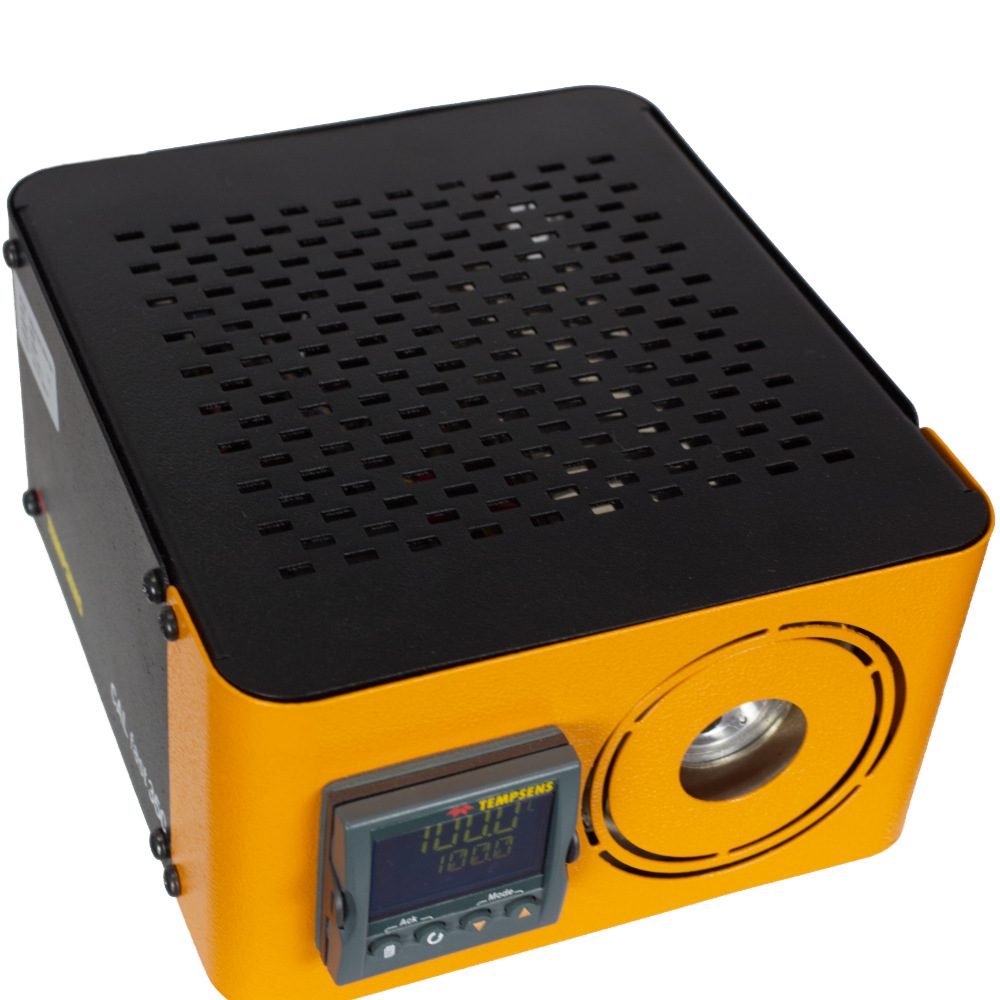

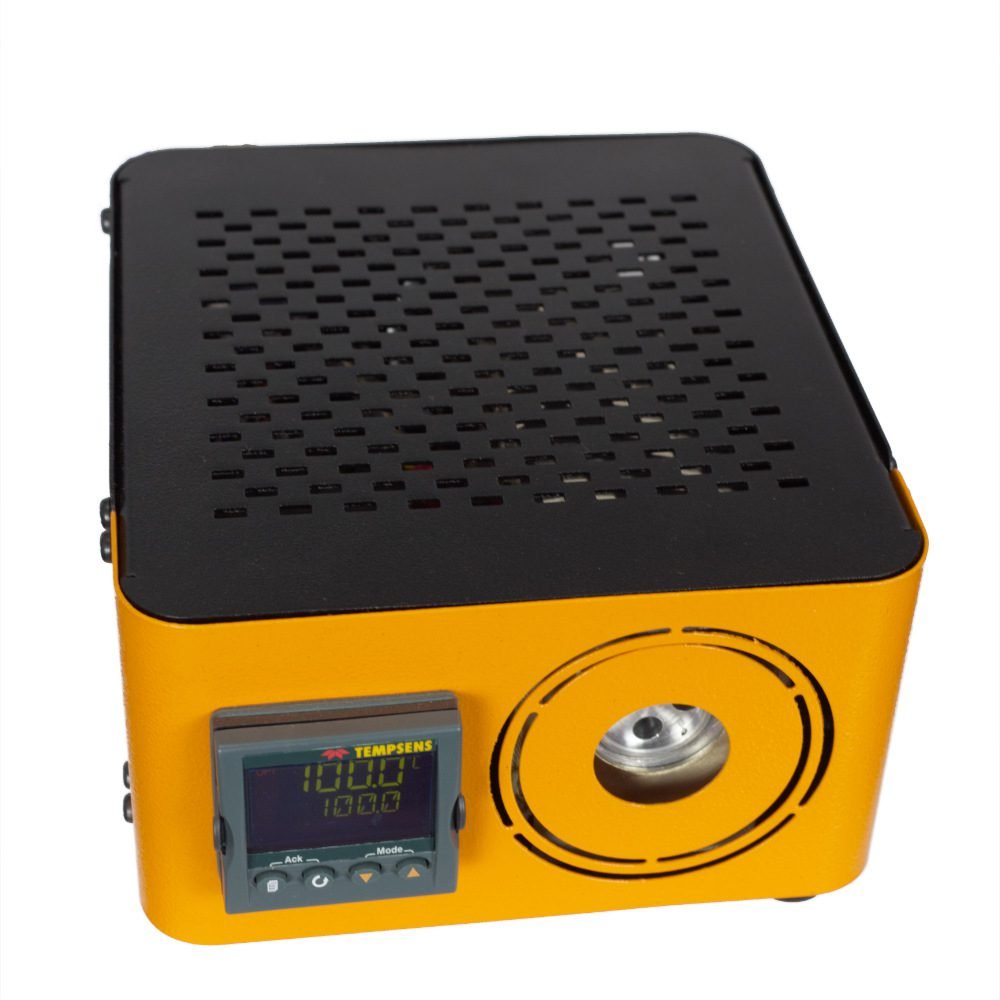

Calfast 350 Portable Dry Block Temperature Calibrator

CALFAST 350 CALIBRATOR, RANGE : 50 TO 350°C, RESOLUTION : 0.1°C STABILITY (15 MIN) : ±0.05°C RADIAL UNIFORMITY : ±0.2°C
Calfast 350 portable dry block temperature calibrator for Industrial/ Laboratory Field Use. The Calfast 350 offers a medium temperature range from 50 to 350°C. It is a highly stable standard furnace for calibrating thermocouples / RTD. As agents for the Tempsens range, we can offer affordable quality at competitive prices for a product that would normally a lot higher from other suppliers.

Specification

Wide TemperatureRange
Wide temperature range from 50 °C to 350 °C

Lightweight & portable
Ideal for Industrial/Laboratory field use.
weights 1.5kg, and its small enough to carry around.

Speed
Extremely quick to reach various temperatures, i.e. it cools down to
100 °C in 15 minutes and heats up from room
temperature to 350°C in 10 minutes.
Saves time and increases productivity.

Accuracy and performance
The unit is portable and provides excellent calibration accuracy
with stability±0.05°C (15min)

Accredited calibration
Each unit is delivered with an accredited
calibration certificate.

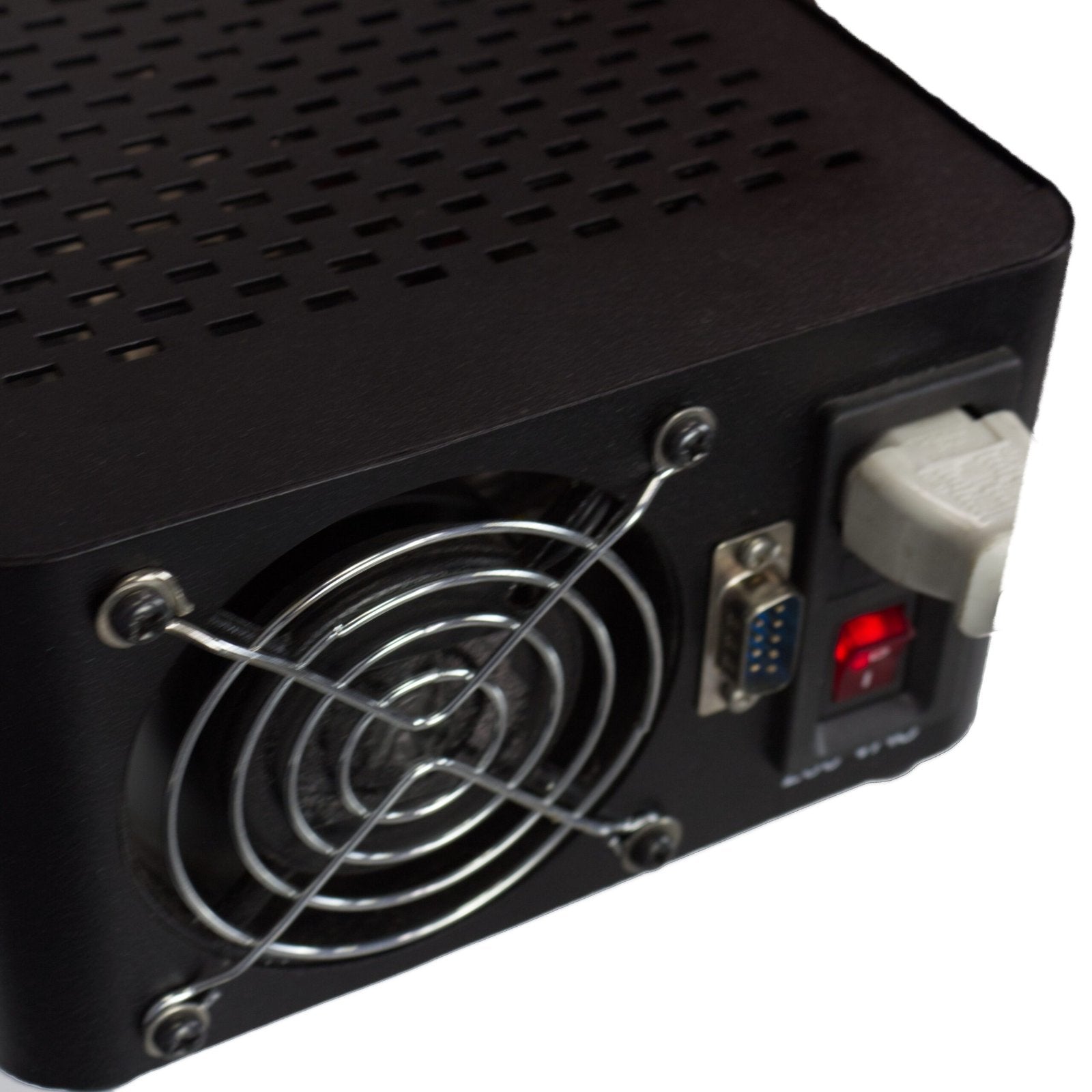

ComputerInterface
The communication port (RS-232) enables
communication with selected units calibrators for automation calibration and
documentation thus it made documentation easy.

Features

TEMPERATURE RANGE: 50 TO 350°C
TEMPERATURE RESOLUTION: 0.1°C
STABILITY (15 MIN): ±0.05°C
RADIAL UNIFORMITY: ±0.2°C
TIME TO REACH MAX. TEMPERATURE: 10 MINS
TIME TO REACH MINI TEMP: 15 MINS (MAX TO 100°C)
CONTROLLING SENSOR: RTD (PT 100)
METHOD OF CONTROL: DIGITAL SELF-TUNED PID CONTROLLER
INSERT CONSTRUCTION: DIA 27 X 120 MM LONG WITH 3 HOLES OF 6.5 X100 MM INSERTION
DEPTH

BB CAVITY APERTURE: 25 MM (optional)
BB CAVITY EMISSIVITY: 0.97 (±0.02)
COMPUTER INTERFACE: RS - 232
OPERATING TEMPERATURE: 20 TO 45°C
POWER REQUIREMENT: 230 VAC, 500 W
OTHER DETAILS AS PER THE ATTACHED CATALOGUE
