Din Rail USB Temperature Transmitter NOVUS TxRail-USB

Prix habituel £66.59
Prix habituel Prix soldé £66.59
Taxes incluses.
Din Rail USB Temperature Transmitter NOVUS TxRail-USB non-isolated DIN rail temperature transmitter 4-20mA, 0-10vdc out.

alt_text
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
TxRail-USB
Prix habituel £66.59
Prix habituel Prix soldé £66.59

Din Rail USB Temperature Transmitter NOVUS TxRail-USB non-isolated DIN rail temperature transmitter 4-20mA, 0-10vdc out.

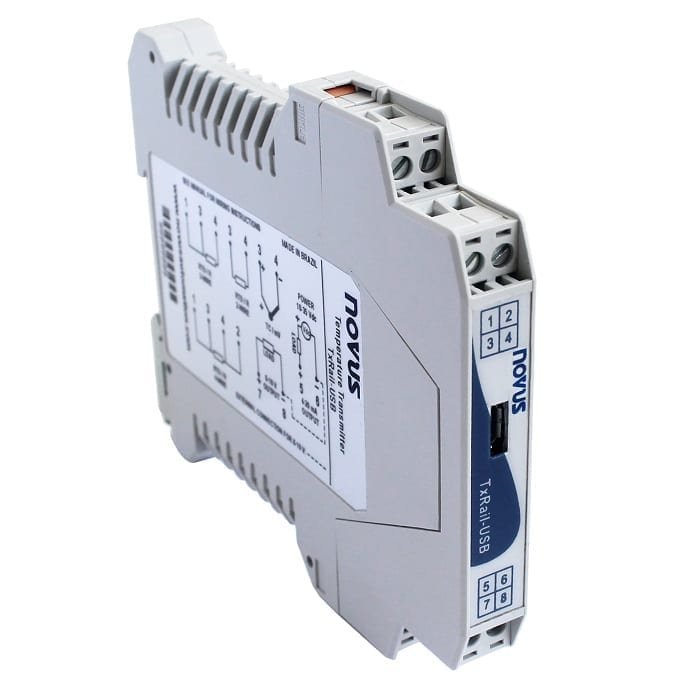

Din Rail USB Temperature Transmitter NOVUS TxRail-USB are a USB configurable DIN rail mount temperature transmitter. It allows the selection and configuration of different input types, measurement range, output type and calibration. Its output can be set to either loop-powered 4-20mA or 0-10V. Highly accurate and user-friendly, the TxRail-USB performs well from simple to sophisticated measurement applications.

Specification


- Universal input accepts Thermocouples J, K, T, E, N, R, S, B, Pt100, Pt1000, NTC and 0-50 mV
- Configurable measurement range
- Sensor break detection according to NAMUR Ne43 recommendations
- Internal cold junction compensation
- Pt100/Pt1000 connection for 2, 3 and 4 wires
- Accuracy (@ 25 °C): typical 0,1% of span for thermocouple, mV, Pt100 and Pt1000
- Temperature effect <± 0,16% @ 25º C
- Configurable output to 4-20 mA loop-powered or 0-10 V
- Output Linearized according with measured temperature
- Output resolution:
4-20 mA output: 2 µA
0-10 V output: 2,5 mV
- Power supply:
10 to 35 Vdc (4-20 mA output)
12 to 35 Vdc (0-10 Vdc output)
- Operating temperature: -40 to 85 °C
- Free Windows® configuration software
- USB micro-B port allows a direct PC connection for configuration. USB Class CDC
- Dimensions: 99,5 x 114 x 12,5 mm
